Description
Compact Design Reduces Required Manufacturing Floor Space.

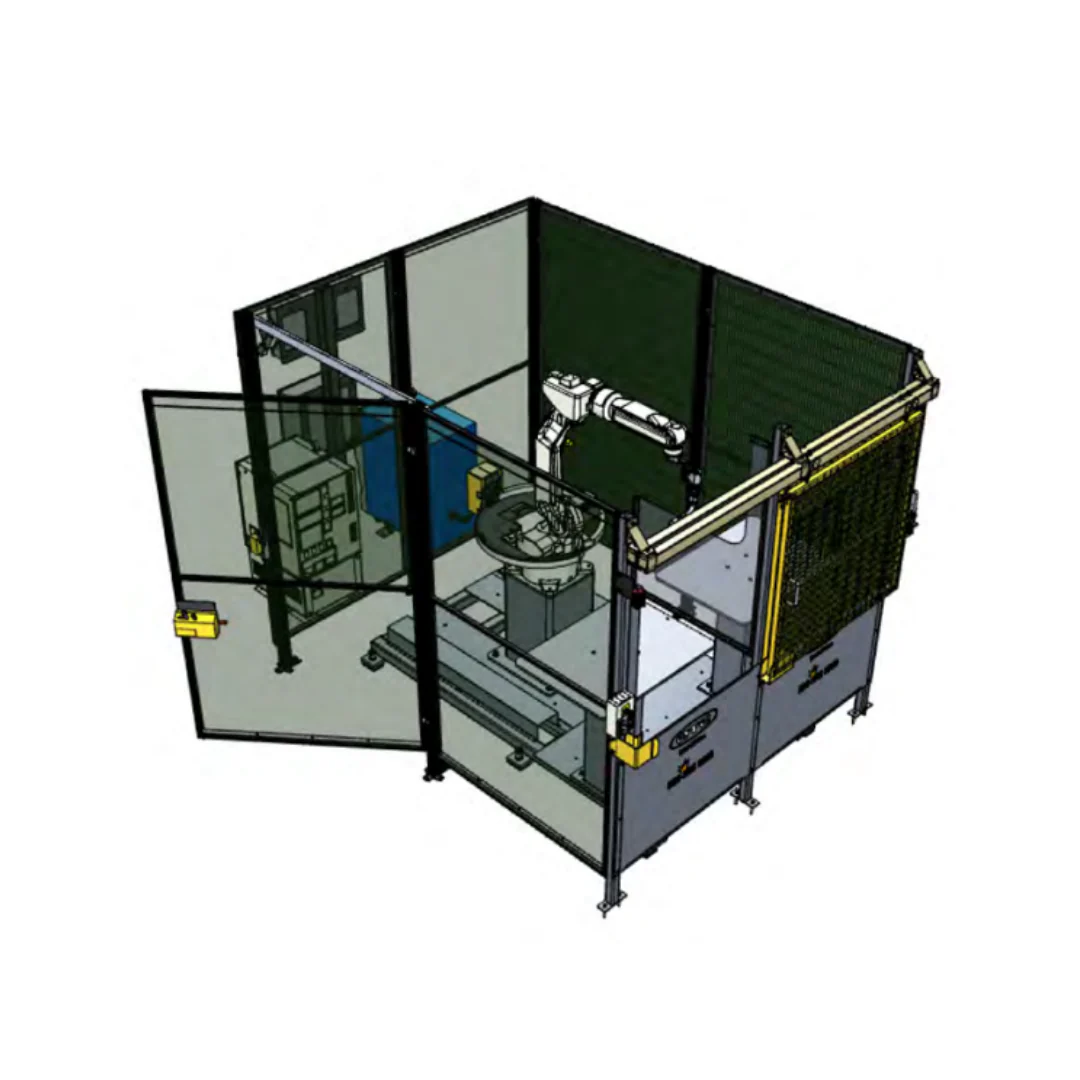

OTC ECO-ARC 200B
$113,600.00
Details
Compact Design Reduces Required Manufacturing Floor Space.
The OTC ECO-ARC 200B is economically designed with stationary tables for durability and quick cycle times. The OTC ECO-ARC 200B is best suited for production runs of medium to high volume, with little or no part positioning. A simple, compact design allows for quick teach times and part access. Pneumatic doors are optional.
The ECO-ARC 200B includes:
- One arc-welding robot (Standard reach)
- Two stationary tables (Station 1 = left side / Station 2 = right side)
- Arc welding cell
- Welding power source
- FD21 robotic controller
- Operation box / start box
- Robot manipulator
- Floor mounted safety fence enclosure
- Teach pendant 8 meter
- Common Base for robot and stationary tables
- Control cable 5 meter
- Manual sliding operator load doors
Mechanical Configuration
- Two stationary tables with machined flat surface (Mild Steel).
- Manual sliding operator load doors with safety interlock
- Access door on LH side.
- Zone kit on robot first sweeping axis for safety.
- Air preparation unit (Filter & Regulator).
- Floor mounted safety fence with arc flash curtains.
- Standard forklift pockets in base for easy movement.
Specifications
| Weight, approx. | 1,500kg |
| Footprint and dimensions | Width 2140mm (84.2″) |
| Height 2200mm (86.6″) | |
| Depth 3420mm (134.6″) | |
| Tabletop dimensions | Width 800mm (31.5″) |
| Depth 600mm (23.6″) | |
| Height of tabletop from floor | 974mm (38.3″) |
| Applicable manipulator | OTC DAIHEN FD-V8 or FD-B6 |
