Compact Design Reduces Required Manufacturing Floor Space.

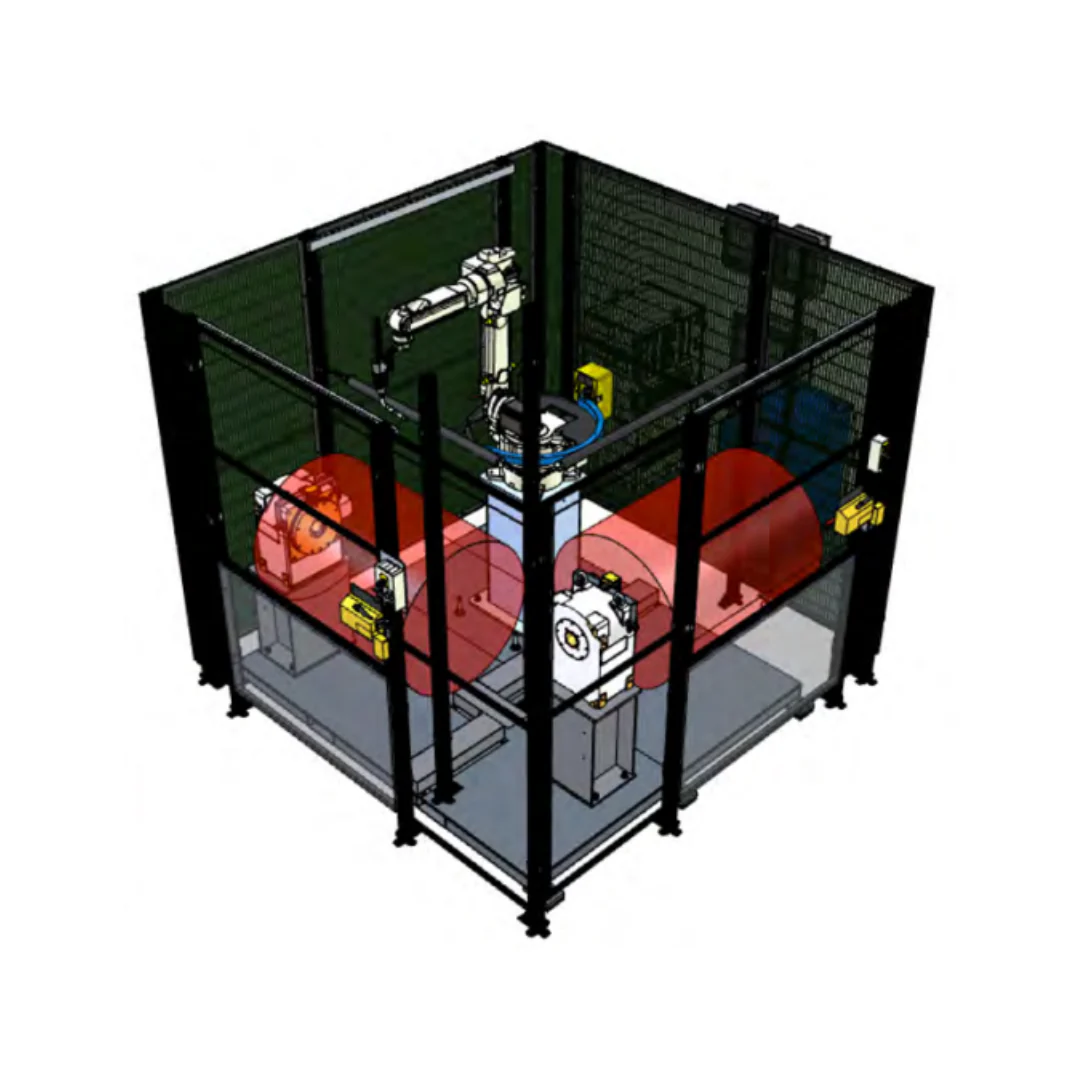

The OTC ECO-ARC 290 is a dual servo-controlled headstock positioning cell designed for
small to medium sized parts. The two-station configuration allows the operator to prepare work on station 1 while the robot welds on station 2.
The ECO-ARC 290B includes:
- One arc-welding robot (Standard reach)
- Two Servo Controlled Headstocks (Station 1 and station 2)
- Arc welding cell
- Welding power source
- FD21 robotic controller
- Common base for robot and headstocks
- Floor mounted safety fence enclosure
- Robot manipulator
- Manual swing gates at operator load stations
- Teach pendant 8 meter
- Operation box / start box
- Control cable 5 meter
Inquire about:
** Optional Dual Stationary Table Downgrade: – additional pricing
Mechanical Configuration
- Servo controlled 250kg headstock positioners.
- Manual swing gate with safety interlock at operator load stations.
- Access door on LH side.
- Zone kit on robot first sweeping axis for safety.
- Floor mounted safety fence with arc flash curtains.
- Standard forklift pockets in base for easy movement.
Specifications
| Weight, approx. | 2,500kg |
| Footprint and dimensions | Width 2350mm (92.5″) |
| Height 2329mm (91.7″) | |
| Depth 3200mm (126.0″) | |
| Maximum Part Length | 1219mm (48.00″) |
| Maximum Part Diameter | 609mm (24.00″) |
| Load Centerline Height | 962mm (37.9″) |
| Applicable manipulator | OTC DAIHEN FD-V8 or FD-B6 |
