OTC ED-ARC 100

Description

Details

Arc Welding Solution for Classroom and Training environments.

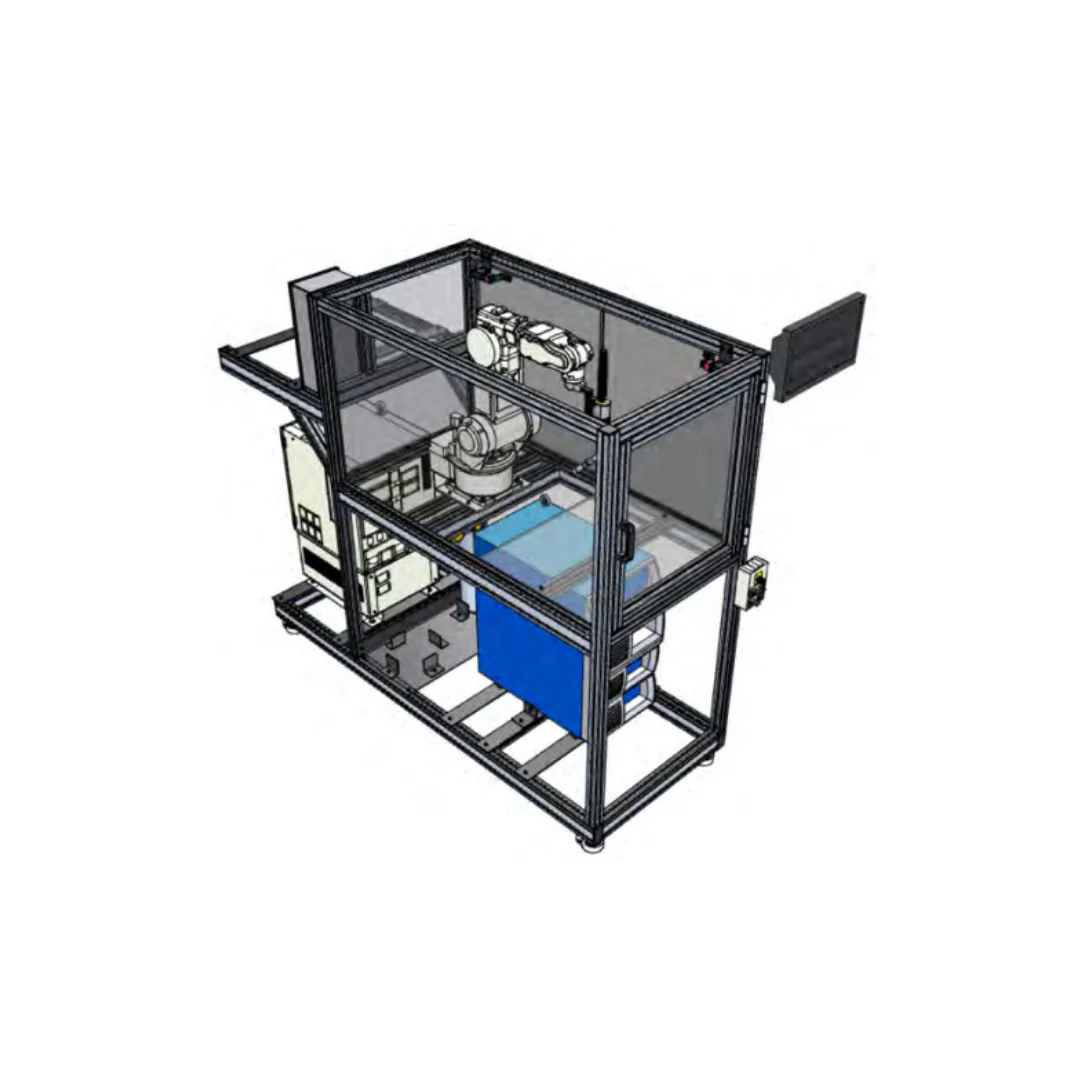

The OTC ED-ARC 100 is a completely mobile, fully-enclosed and safety interlocked arc welding training station. The OTC ED-ARC 100 features a stationary table design to allow robotic weld training on small parts. Featuring a lightweight aluminum frame and polycarbonate arc flash enclosure, the OTC ED-ARC 100 allows all the capabilities of the welding environment to be brought to the classroom for instructional teaching.

Welding packages are available – contact us for more information.

The ED-ARC 100 includes:

• One arc-welding robot (Standard Reach)
  • All necessary components are tied on to common base for easy installation.
• Arc welding cell
• Welding power source
• FD21 robotic controller
• Common aluminum extrusion frame
• Robot manipulator
• Polycarbonate arc-flash enclosure
• Teach pendant 8 meter
• Operation box
• Control cable 5 meter

Additional pricing options:

• Optional Secondary Workstation

Mechanical Configuration

• Flat table top surface (Aluminum) .
• Aluminum extrusion frame with polycarbonate panels.
• Maximum payload is 250kg (550lbs).
• Access door on side with tinted window opening.
• Welding power source comes mounted on shelf (WB-M350/WB-P402).
• Lightweight extrusion frame design for easy mobility and installation.
• Leveling casters for stable installation.
• Tinted panels provide better light in the work area and operator safety.
• Standard display monitor.

Specifications
