Arc Welding Solution for Small and Medium Size Parts.

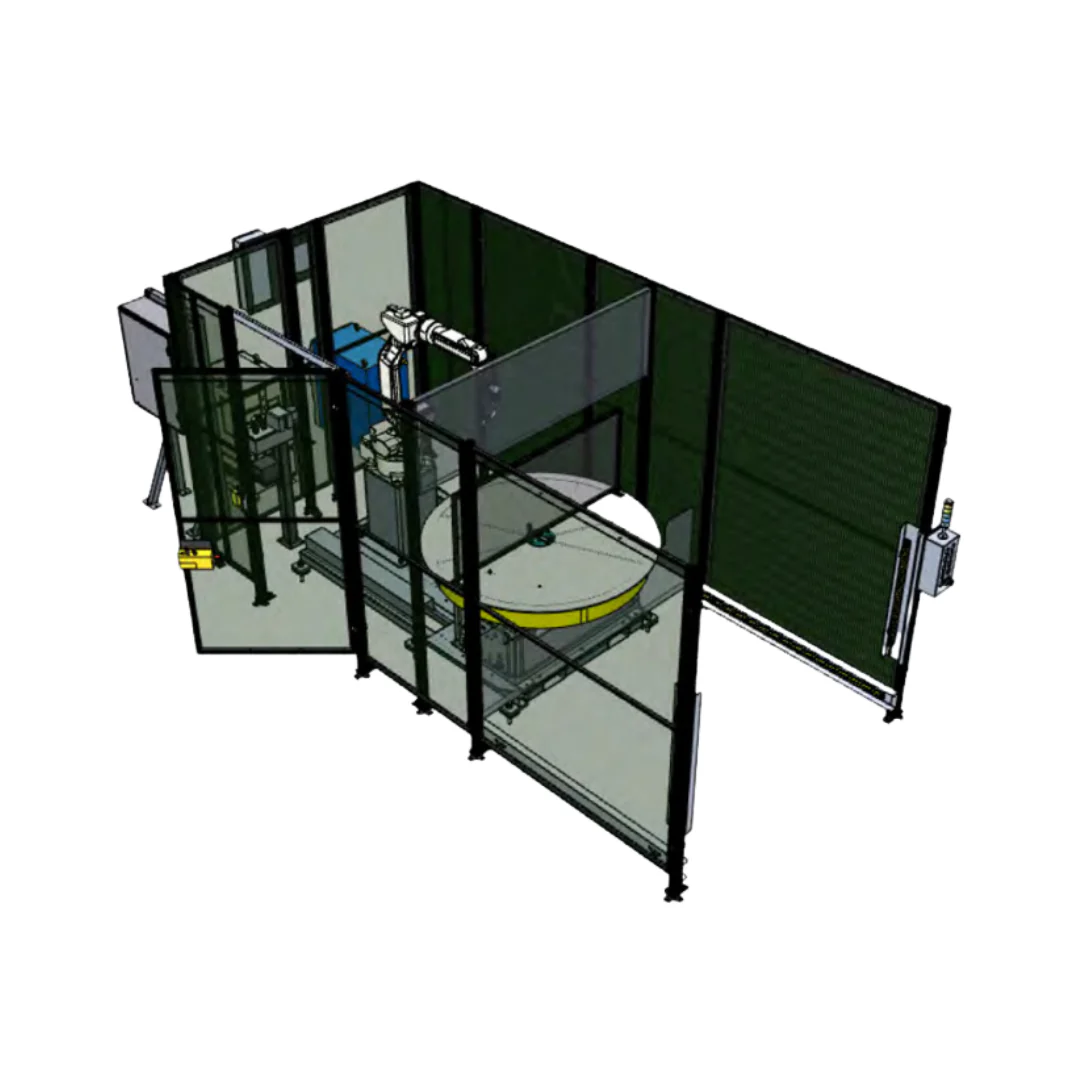

The OTC SERVO-ARC 600B servo-controlled turntable positioning cell is designed for small and medium size parts with minimal operator movement required. The operator can prepare the work on side A while the robot is welding on Side B.
The SERVO-ARC 600B includes:
- One arc-welding robot (Standard Reach)
- One Servo-Controlled indexer (A / B side)
- Arc welding cell

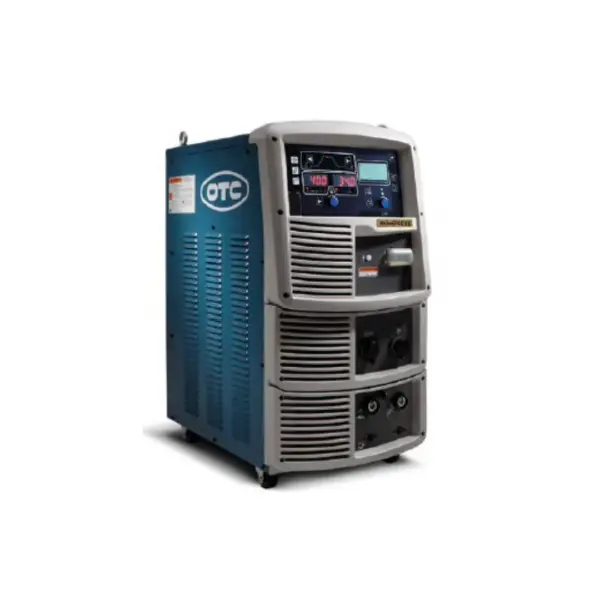

- Welding power source
- FD21 robotic controller
- Floor mounted safety fence enclosure
- Robot manipulator
- Common Base for robot and servo table
- Teach pendant 8 meter
- Operation box
- Control cable 5 meter
Mechanical Configuration
- Servo controlled 60″ diameter tabletop with flat surface (Mild Steel) (180 total degrees of rotation).
- Center shield on tabletop for arc flash (Sheet metal with tube frame).
- Maximum payload is 250kg (550lb) per side. (Payload on A side and B side needs to be balanced).
- Maximum allowable inertia moment is 1078 Nm.
- Access door on LH side.
- Exterior sheet metal panels.
- Indexing time: 4 sec (based on rate of load)
- Even if the sum of the load on both sides of the table is equal or less than the maximum payload capacity, the payload capacity of one side should not exceed the maximum value of 250kg (550lbs).
- Standard forklift pockets in base for easy movement.
Specifications
| Weight, approx. | 2,000kg |
| Footprint and dimensions | Width 2187mm (86.1″) |
| Height 2200mm (86.6″) | |
| Depth 4564mm (179.9″) | |
| Tabletop Diameter | 1524mm (60″) |
| Through Hole Diameter | 3 inches |
| Height of Tabletop | 830mm (32.7″) |
| Applicable manipulator | OTC DAIHEN FD-V8 or FD-B6 |
